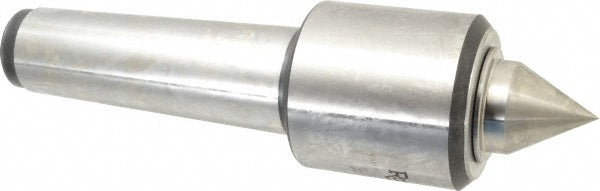

Lathe Center - Royal Products 10446

Royal Products

Lathe Center - Royal Products 10446

MFR# 10446

$2,883.87List $3,620.00 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Royal Products 10446 is a steel lathe center.

Specifications

Accuracy0in
ApplicationGrinding; Hard-Turning; Turning
Bearing typeQuad
Carbide tipped pointNo
FeaturesBody & Point are Hardened & Ground For Strength & Long Life; Exclusive Roto-Shield Coolant Slinger & Upgraded Seal; Precision; Preloaded Bearing Assembly Provides Exceptional Rigidity & Accuracy
Head diameter3.8200
Head length3.8900
Included angle60
Load capacity5240.00lb
MaterialSteel
Maximum rpm3000
Maximum workpiece weight lb5240.00
Overall length14.0000
Point diameter in2
Point length2.3100
Point styleStandard
Radial load5240lb
Shank length7.7500
Shank typeTaper
Taper sizeMT6 HD
Thrust load lb5300.00
