Sandvik Coromant

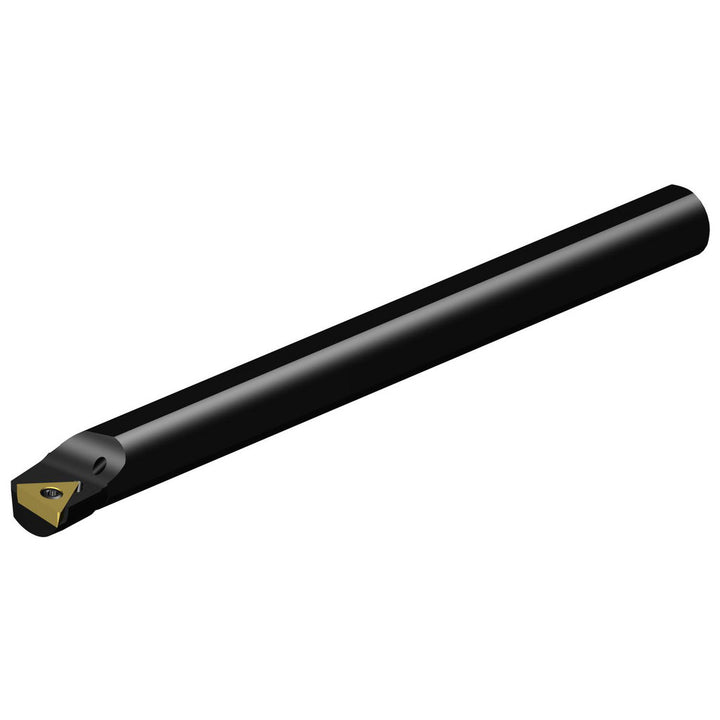

Indexable Boring - Sandvik Coromant 5721261
MFR# 5721261Cat# A08M-STFCR 2-B1Series CoroTurn 107
$214.41List $221.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721261 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge6.0000
Center to cutting edge0.3120
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 221
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness in1/8
Lead angle0.00
Manufacturers catalog numberA08M-STFCR 2-B1
Minimum bore diameter0.5984
Minimum bore diameter using diamond insert cartridge0.5984
Minimum bore diameter using triangle insert cartridge0.5984
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in1/2
Number of inserts used on toolholder1
Overall length in6
RakeNeutral
Rake angle0.00
Shank diameter in1/2
Toolholder styleA-STFC
Tool materialSteel
