Sandvik Coromant

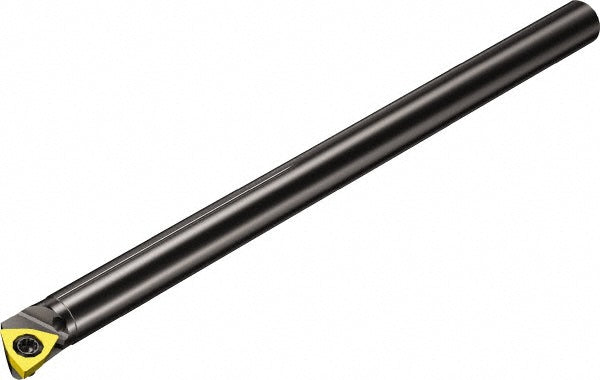

Indexable Boring - Sandvik Coromant 5721283
MFR# 5721283Cat# A03F-SWLPR 1.2-RSeries CoroTurn 111
$208.41List $221.40
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721283 indexable boring. Series CoroTurn 111.
Specifications
Back of bar to cutting edge3.2500
Center to cutting edge0.1260
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityWPMT 1.210
Insert holding methodScrew Clamping
Insert inscribed circle0.1500
Insert thickness in1/16
Lead angle0.00
Manufacturers catalog numberA03F-SWLPR 1.2-R
Minimum bore diameter0.2598
Minimum bore diameter using diamond insert cartridge0.2598
Minimum bore diameter using triangle insert cartridge0.2598
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in3/16
Number of inserts used on toolholder1
Overall length in3-1/4
RakeNeutral
Rake angle0.00
Shank diameter in3/16
Toolholder styleA-SWLP
Tool materialSteel
