Sandvik Coromant

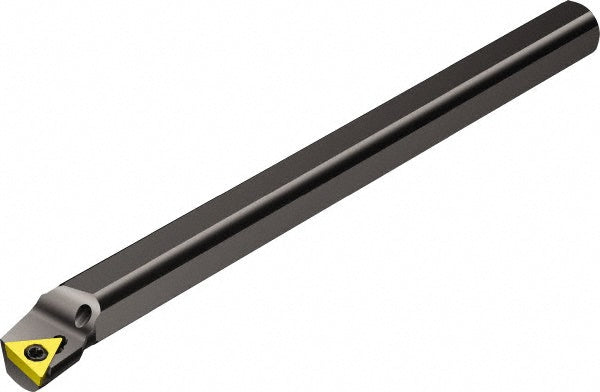

Indexable Boring - Sandvik Coromant 5721287
MFR# 5721287Cat# A04F-STFCR 1.2Series CoroTurn 107
$258.22List $274.32
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721287 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge3.2500
Center to cutting edge0.1720
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 1.21.20
Insert holding methodScrew Clamping
Insert inscribed circle0.1563
Insert thickness0.0750
Lead angle0.00
Manufacturers catalog numberA04F-STFCR 1.2
Minimum bore diameter0.3425
Minimum bore diameter using diamond insert cartridge0.3425
Minimum bore diameter using triangle insert cartridge0.3425
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in1/4
Number of inserts used on toolholder1
Overall length in3-1/4
RakeNeutral
Rake angle0.00
Shank diameter in1/4
Toolholder styleA-STFC
Tool materialSteel
