Sandvik Coromant

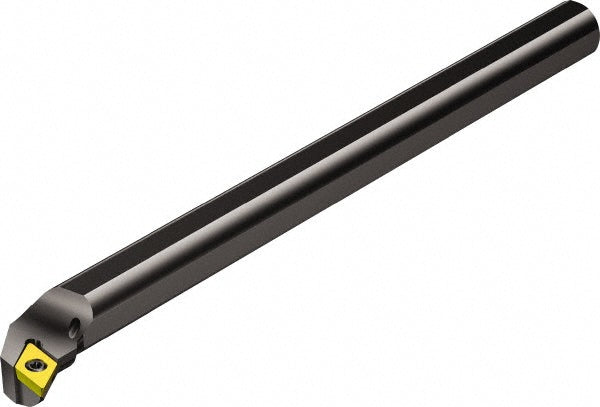

Indexable Boring - Sandvik Coromant 5721310
MFR# 5721310Cat# A08M-SDUPR 2-ESeries CoroTurn 111
$208.41List $221.40
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721310 indexable boring. Series CoroTurn 111.
Specifications
Back of bar to cutting edge6.0000
Center to cutting edge0.3920
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDPMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness in3/32
Lead angle6
Manufacturers catalog numberA08M-SDUPR 2-E
Minimum bore diameter0.6811
Minimum bore diameter using diamond insert cartridge0.6811
Minimum bore diameter using triangle insert cartridge0.6811
Multi use applicationBoring; Profiling; Turning
Multi use toolYes
Neck diameter in1/2
Number of inserts used on toolholder1
Overall length in6
RakePositive
Rake angle6.00
Shank diameter in1/2
Toolholder styleA-SDUP
Tool materialSteel
