Sandvik Coromant

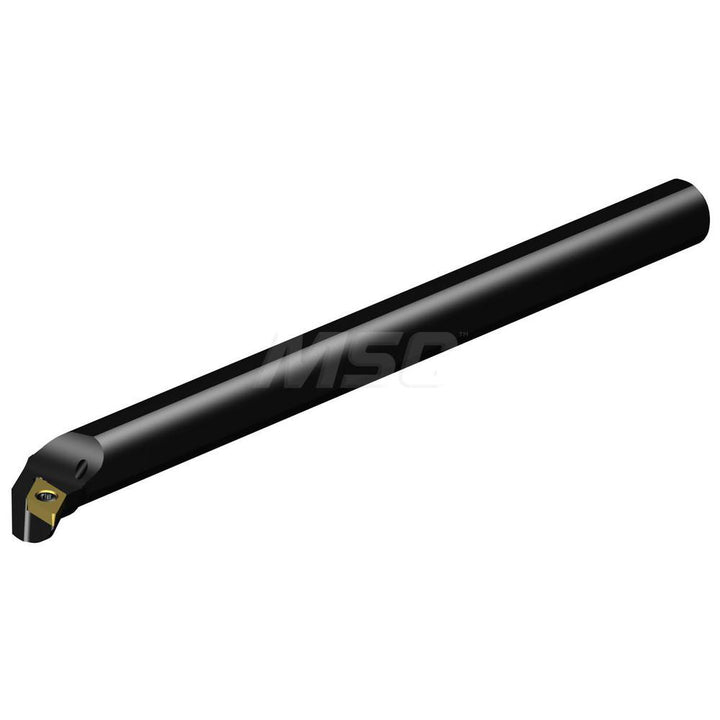

Indexable Boring - Sandvik Coromant 5721683
MFR# 5721683Cat# A12S-SDUCR 3Series CoroTurn 107
$252.11List $267.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5721683 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge10.0000
Center to cutting edge in5/8
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDCMT 32.52
Insert holding methodScrew Clamping
Insert inscribed circle in3/8
Insert thickness in5/32
Lead angle0.00
Manufacturers catalog numberA12S-SDUCR 3
Minimum bore diameter1.0512
Minimum bore diameter using diamond insert cartridge1.0512
Minimum bore diameter using triangle insert cartridge1.0512
Multi use applicationBoring; Profiling; Turning
Multi use toolYes
Neck diameter in3/4
Number of inserts used on toolholder1
Overall length in10
RakeNeutral
Rake angle0.00
Shank diameter in3/4
Toolholder styleA-SDUC
Tool materialSteel
