Sandvik Coromant

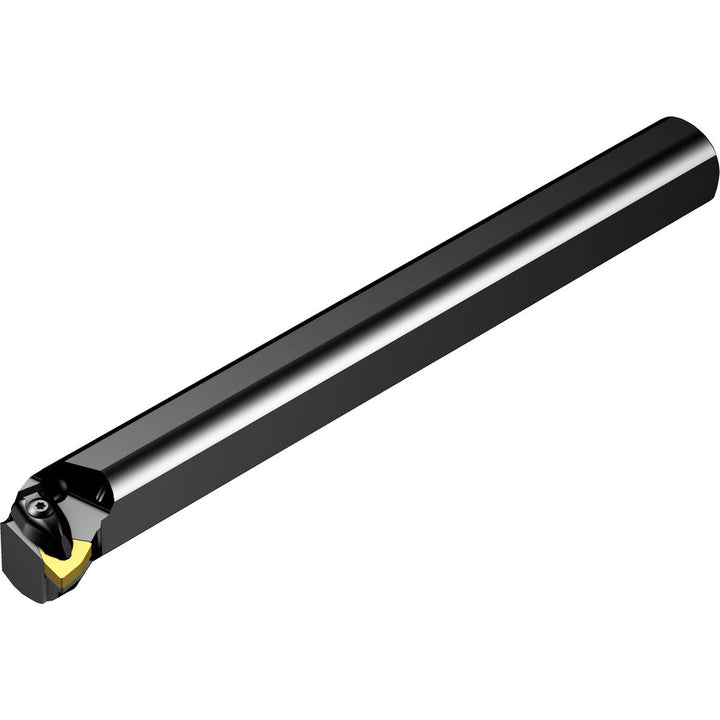

Indexable Boring - Sandvik Coromant 5722020
MFR# 5722020Cat# A20T-DWLNR 4Series T-Max P
$471.70List $501.12
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5722020 indexable boring. Series T-Max P.
Specifications
Back of bar to cutting edge12.0000
Center to cutting edge in1
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityWNMG 432
Insert holding methodWedge
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-6
Manufacturers catalog numberA20T-DWLNR 4
Minimum bore diameter1.7047
Minimum bore diameter using diamond insert cartridge1.7047
Minimum bore diameter using triangle insert cartridge1.7047
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in1-1/4
Number of inserts used on toolholder1
Overall length in12
RakeNegative
Rake angle-6.00
Shank diameter in1-1/4
Toolholder styleA-DWLN
Tool materialSteel
