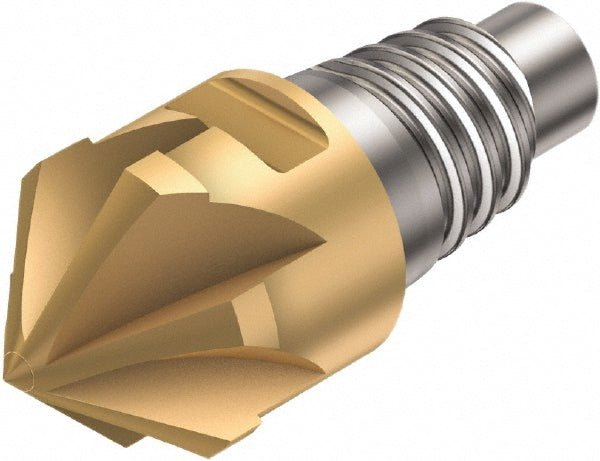

Carbide Insert, Grade 1030, TiAlN - Sandvik Coromant 5722432

Sandvik Coromant

Carbide Insert, Grade 1030, TiAlN - Sandvik Coromant 5722432

MFR# 5722432Series 316

$266.09List $341.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes8
Grade1030
CoatingTiAlN

Description

The Sandvik Coromant 5722432 is a carbide indexable insert, grade 1030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Chamfer angle60.000
ChipbreakerStraight
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting width0.6250
Functional length0.7362
Helix angle0
Included angle degree90
Insert handRight Hand
Insert size16CM800
Lead angle60
Length of cut0.3031
Manufacturers catalog number5722432
Manufacturer grade1030
Material gradeP30; P40; P50; M30; M40; N10; N20; S10; S20
Maximum depth of cut0.3031
Milling tip full descriptionA316-16CM800-06260G 1030
Milling tip styleA316..CM
Milling tip typeChamfer
Number of flutes8
Overall length0.7362
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
StandardsANSI
Tool materialCarbide
