Sandvik Coromant

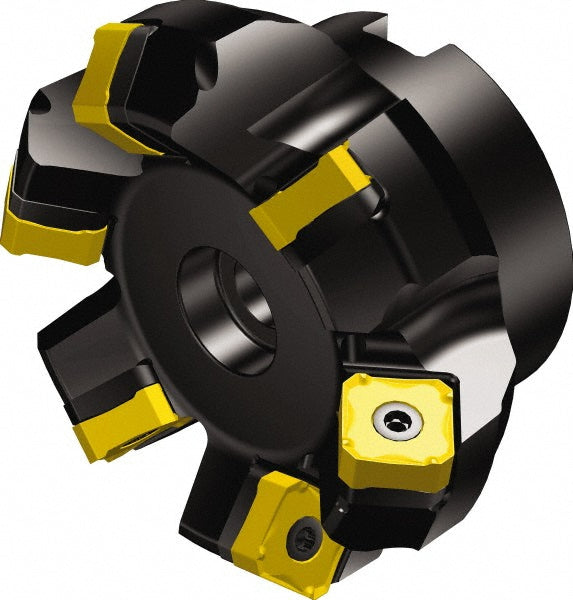

Indexable Milling Cutters - Sandvik Coromant 5722549
MFR# 5722549Series CoroMill 345
$1,261.33List $1,340.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Sandvik Coromant 5722549 indexable milling cutters. Series CoroMill 345.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size code345R-13T5
Complete insert compatibility345R-13T5
Coolant throughYes
Cutter styleA345
Cutting directionRight Hand
Cutting edge length0.2362
Hub diameter in1-1/2
Insert holding methodClamp; Screw
Keyway width0.6331
Lead angle45
Maximum body diameter4.0000
Maximum cutting diameter in4
Maximum depth of cut0.2362
Number of cutter inserts7
Number of flutes7
Overall height2.4803
Pitch typeClose
RakeNegative
Toolholder materialSteel
