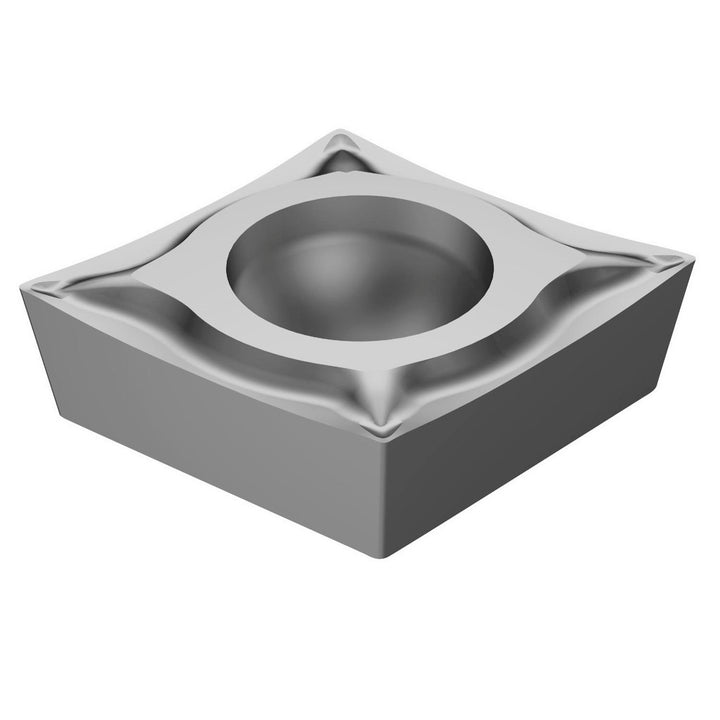

CCGT 09 T3 04-UM 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5722999
MFR# 5722999ISO/ANSI# CCGT 09 T3 04-UM 5015Series CoroTurn 107
$28.13List $36.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5722999 is a CCGT 09 T3 04-UM 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT 09 T3 04-UM 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeG
Wiper edgeNo
