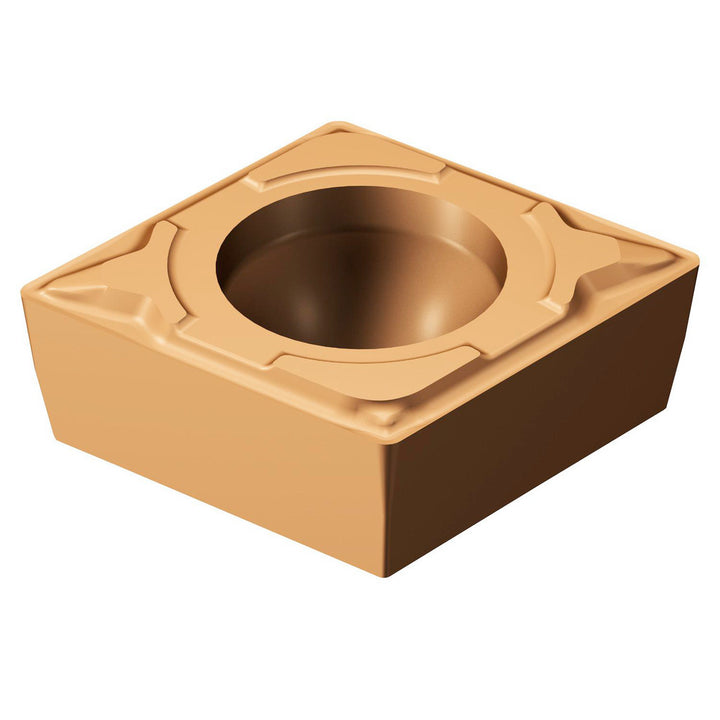

CCMT 09 T3 04-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5723296

Sandvik Coromant

CCMT 09 T3 04-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5723296

MFR# 5723296ISO/ANSI# CCMT09T304Series CoroTurn 107

$15.51List $19.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade1115
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5723296 is a CCMT 09 T3 04-MF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerMF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-MF 1115
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
