Sandvik Coromant

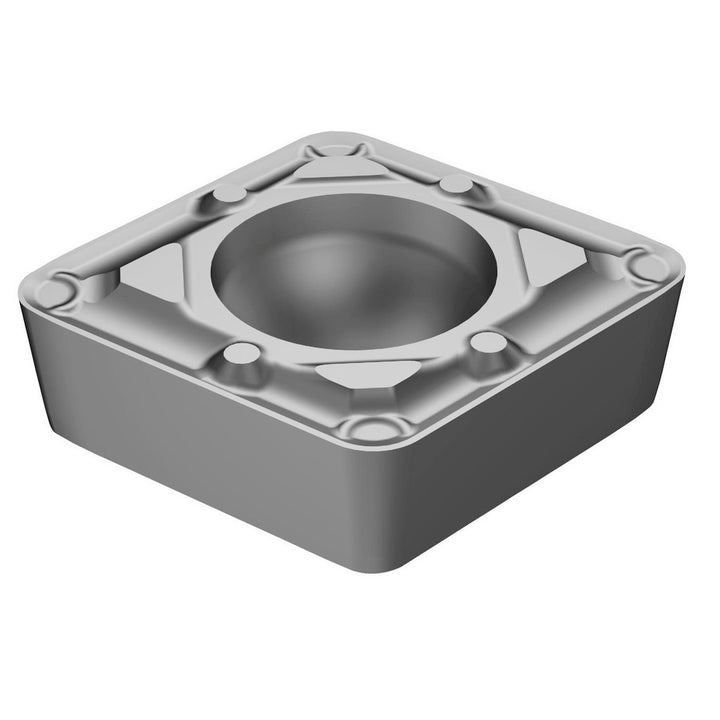

CCMT 09 T3 02-WF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5723330
MFR# 5723330ISO/ANSI# CCMT 09 T3 02-WF 5015Series CoroTurn 107
$18.74List $24.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5723330 is a CCMT 09 T3 02-WF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Corner radius0.0079
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3729
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 02-WF 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
