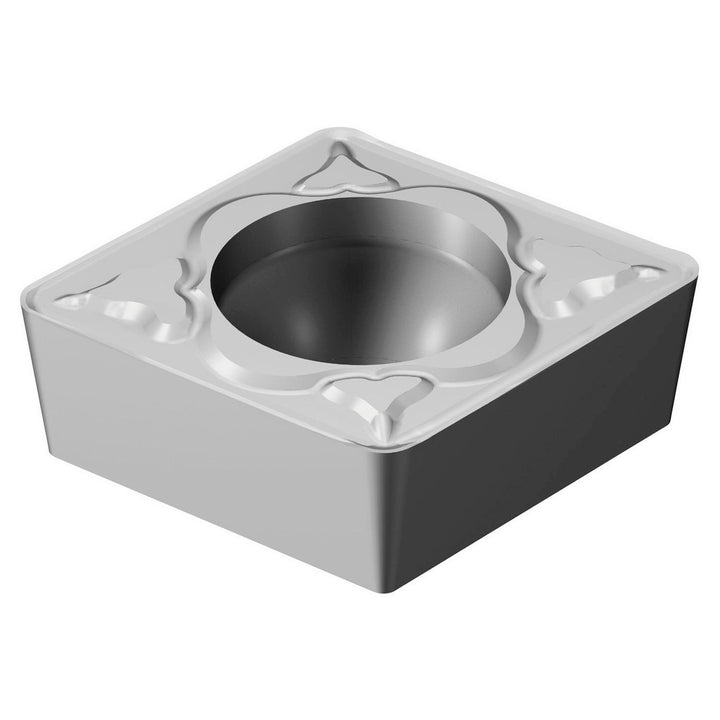

CCMT 09 T3 04-KM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5723343

Sandvik Coromant

CCMT 09 T3 04-KM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5723343

MFR# 5723343ISO/ANSI# CCMT09T304Series CoroTurn 107

$11.30List $14.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeH13A
MaterialCarbide

Description

The Sandvik Coromant 5723343 is a CCMT 09 T3 04-KM H13A carbide indexable insert, grade H13A. Suited for cast iron.

Specifications

Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerKM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-KM H13A
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Side clearancePositive
Tolerance codeM
Wiper edgeNo
