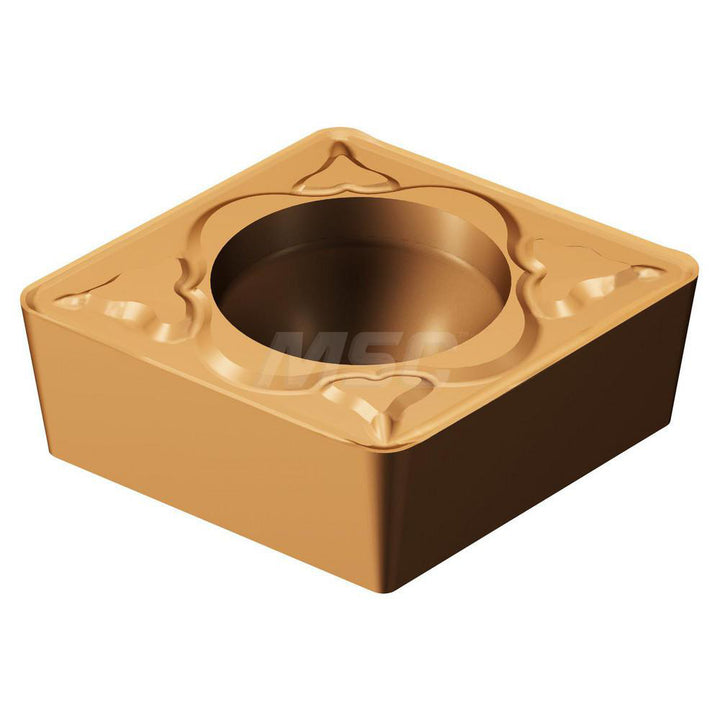

CCMT 12 04 08-MM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5723484
MFR# 5723484ISO/ANSI# CCMT 12 04 08-MM 1115Series CoroTurn 107
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5723484 is a CCMT 12 04 08-MM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-MM 1115
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
