Sandvik Coromant

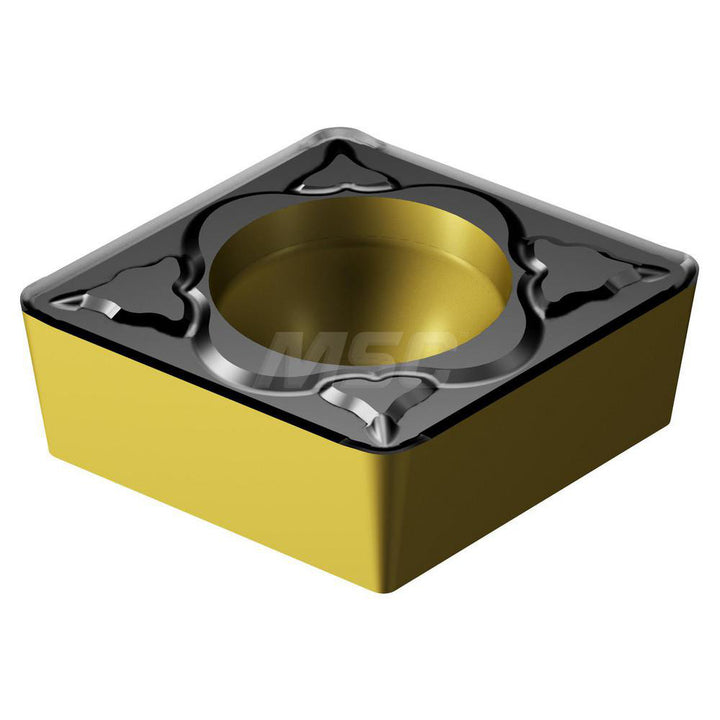

CCMT 12 04 08-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5723499
MFR# 5723499ISO/ANSI# CCMT 12 04 08-KM 3210Series CoroTurn 107
$23.20List $29.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723499 is a CCMT 12 04 08-KM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-KM 3210
Length range0.4000 - 0.5000
Manufacturer grade3210
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
