Sandvik Coromant

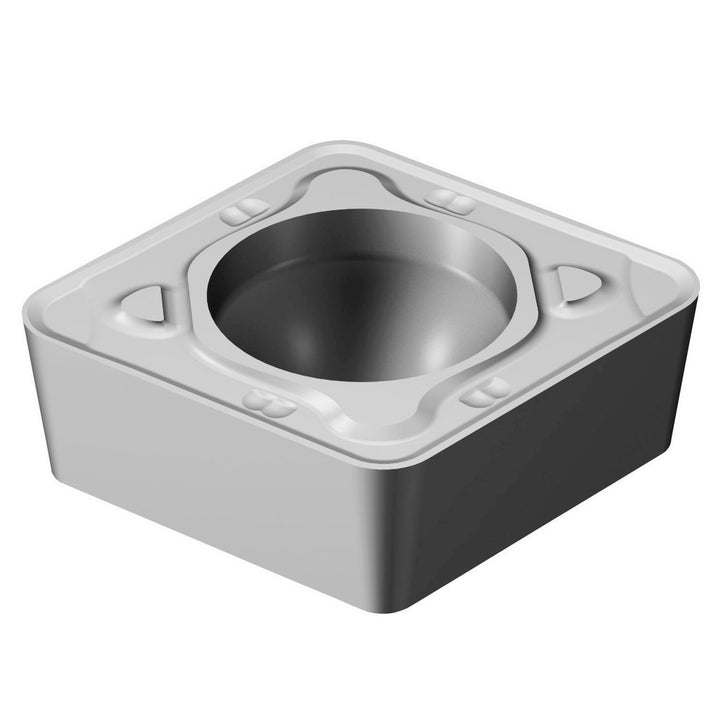

CCMT 12 04 08-KR H13A Carbide Insert, Grade H13A - Sandvik Coromant 5723503
MFR# 5723503ISO/ANSI# CCMT 12 04 08-KR H13ASeries CoroTurn 107
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5723503 is a CCMT 12 04 08-KR H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeC
Corner radius in1/32
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-KR H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
