Sandvik Coromant

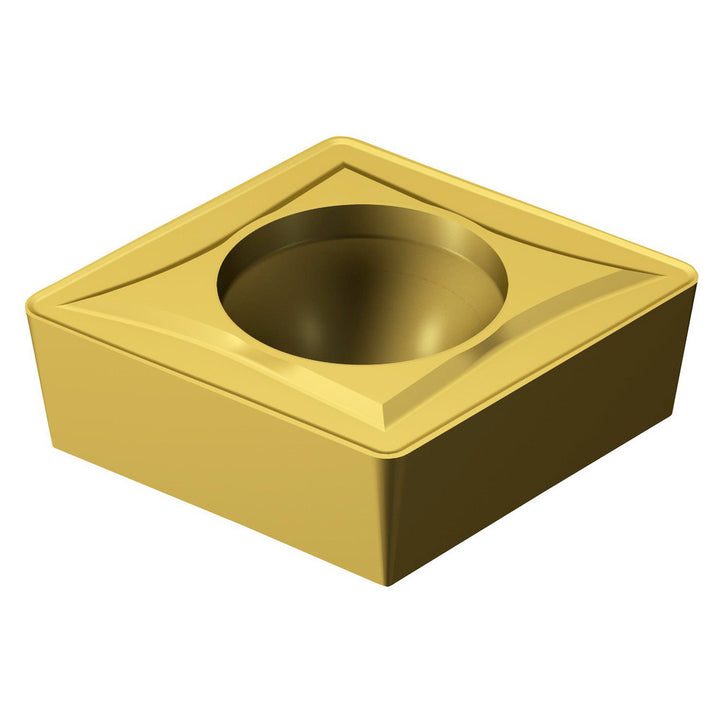

CCMT 06 02 04-UR 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5723684
MFR# 5723684ISO/ANSI# CCMT 06 02 04-UR 235Series CoroTurn 107
$13.10List $16.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723684 is a CCMT 06 02 04-UR 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerUR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 04-UR 235
Length range0.0000 - 0.3000
Manufacturer grade235
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
