Sandvik Coromant

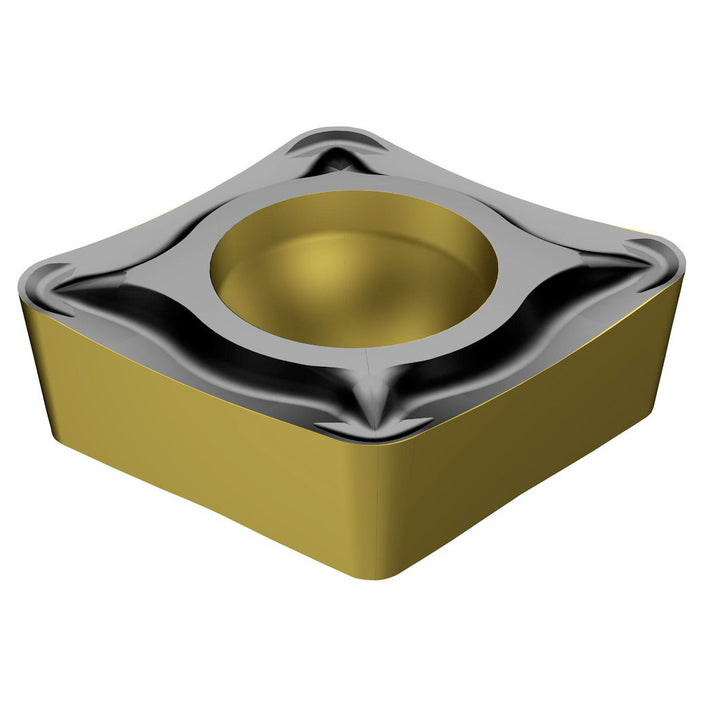

CCMT09T308UM1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5723699
MFR# 5723699ISO/ANSI# CCMT09T308UM1515Series CoroTurn 107
$16.76List $21.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723699 is a CCMT09T308UM1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308UM1515
Length range0.3000 - 0.4000
Manufacturers catalog number5723699
Manufacturer grade1515
Maximum depth of cut0.3492
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
