Sandvik Coromant

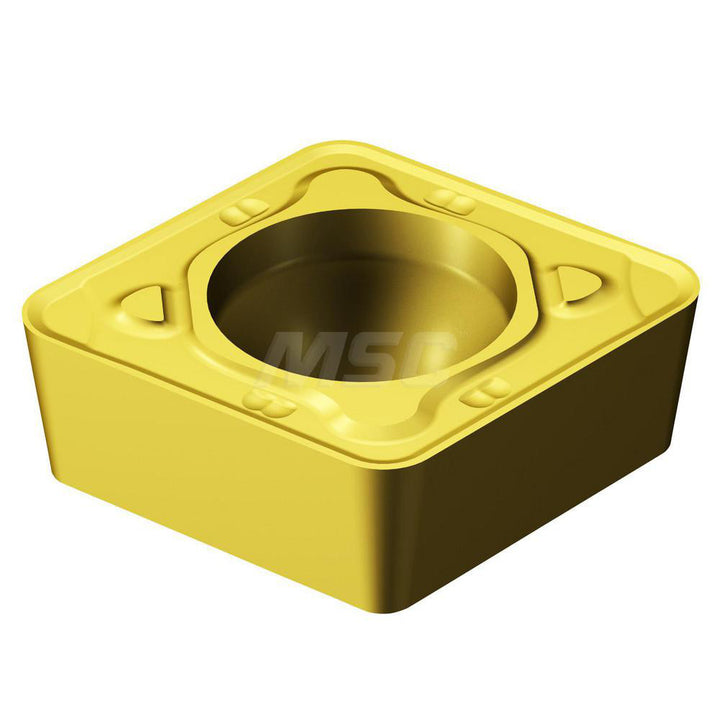

CCMT060208MR2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5723732
MFR# 5723732ISO/ANSI# CCMT060208MR2015Series CoroTurn 107
$13.81List $17.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723732 is a CCMT060208MR2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208MR2015
Length range0.0000 - 0.3000
Manufacturers catalog number5723732
Manufacturer grade2015
Maximum depth of cut0.2224
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
