Sandvik Coromant

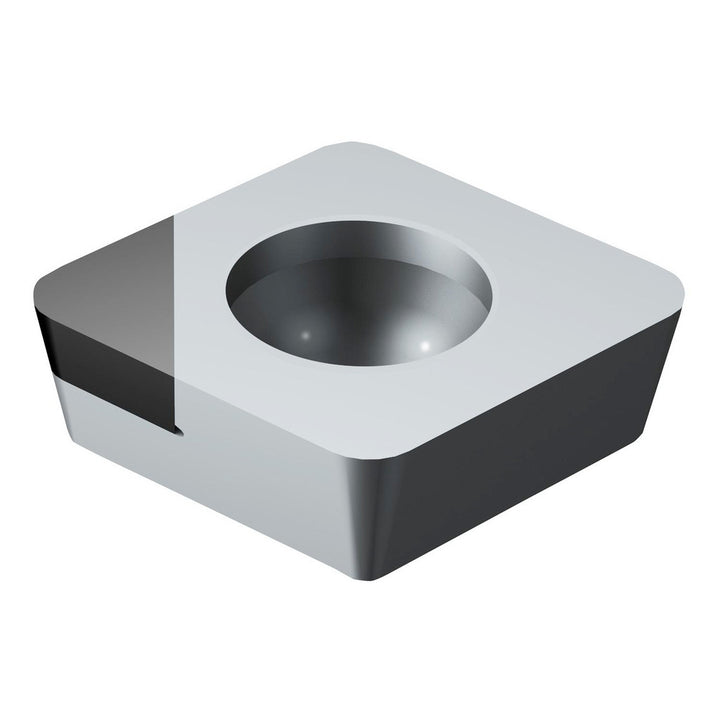

CCMW060204FP CD10 Carbide Insert, Grade CD10 - Sandvik Coromant 5723867
MFR# 5723867ISO/ANSI# CCMW060204FP CD10Series CoroTurn 107
$172.63List $221.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeCD10
MaterialCarbide
Description
The Sandvik Coromant 5723867 is a CCMW060204FP CD10 carbide indexable insert, grade CD10. Suited for non-ferrous metal.
Specifications
Chip breakerFP
Clearance codeC
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1142
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMW
Insert thickness in3/32
Iso codeCCMW060204FP CD10
Length range0.0000 - 0.3000
Manufacturer gradeCD10
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Tolerance codeM
Wiper edgeNo
