Sandvik Coromant

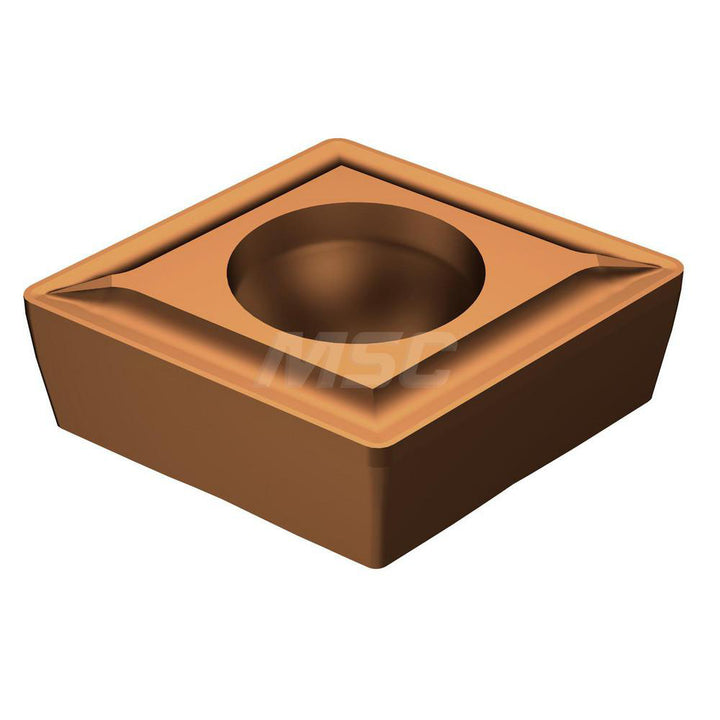

CCMT 06 02 02-UF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5723891
MFR# 5723891ISO/ANSI# CCMT 06 02 02-UF 1125Series CoroTurn 107
$15.21List $19.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5723891 is a CCMT 06 02 02-UF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2460
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 02-UF 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
