Sandvik Coromant

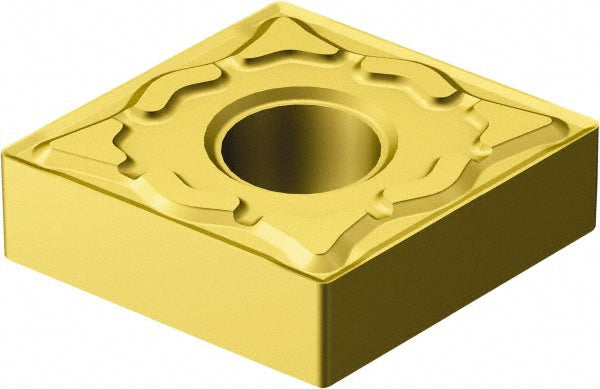

CNMG 12 04 08-KF 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5723893
MFR# 5723893ISO/ANSI# CNMG 12 04 08-KF 3005Series T-Max P
$17.72List $22.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723893 is a CNMG 12 04 08-KF 3005 carbide indexable insert, grade 3005, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-KF 3005
Length range0.4000 - 0.5000
Manufacturer grade3005
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
