Sandvik Coromant

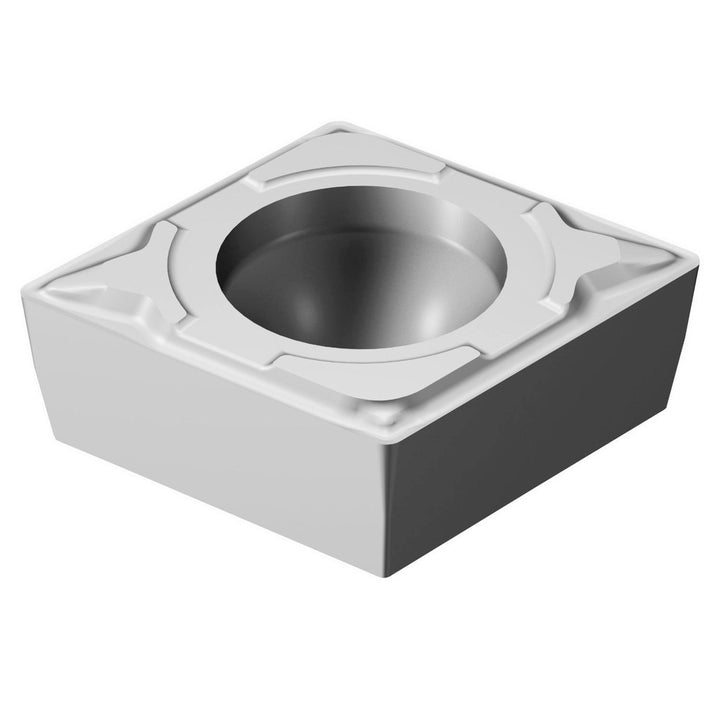

CCMT 06 02 02-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5723957
MFR# 5723957ISO/ANSI# CCMT 06 02 02-PF 5015Series CoroTurn 107
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5723957 is a CCMT 06 02 02-PF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2460
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 02-PF 5015
Length range0.0000 - 0.3000
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
