Sandvik Coromant

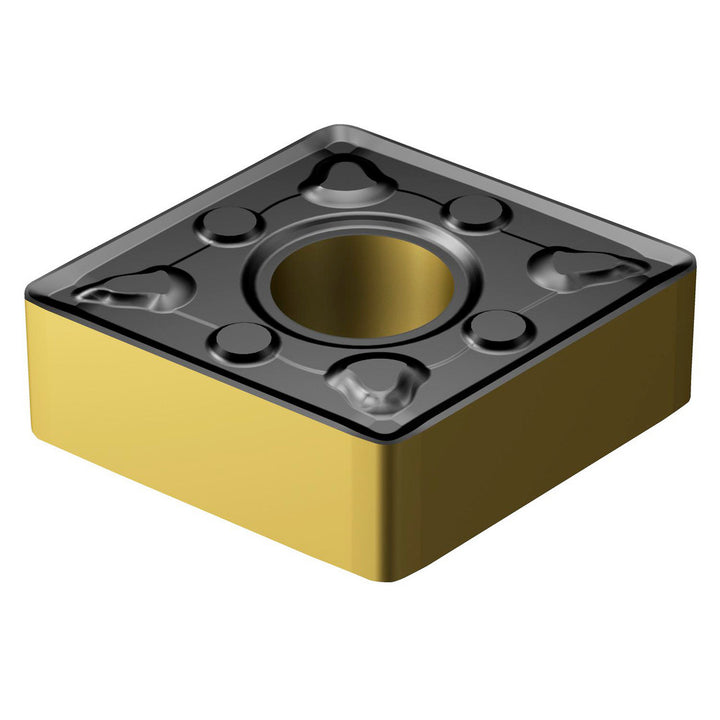

CNMG 12 04 08-WM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5724040
MFR# 5724040ISO/ANSI# CNMG 12 04 08-WM 3210Series T-Max P
$20.62List $26.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724040 is a CNMG 12 04 08-WM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerWM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-WM 3210
Length range0.4000 - 0.5000
Manufacturer grade3210
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeYes
