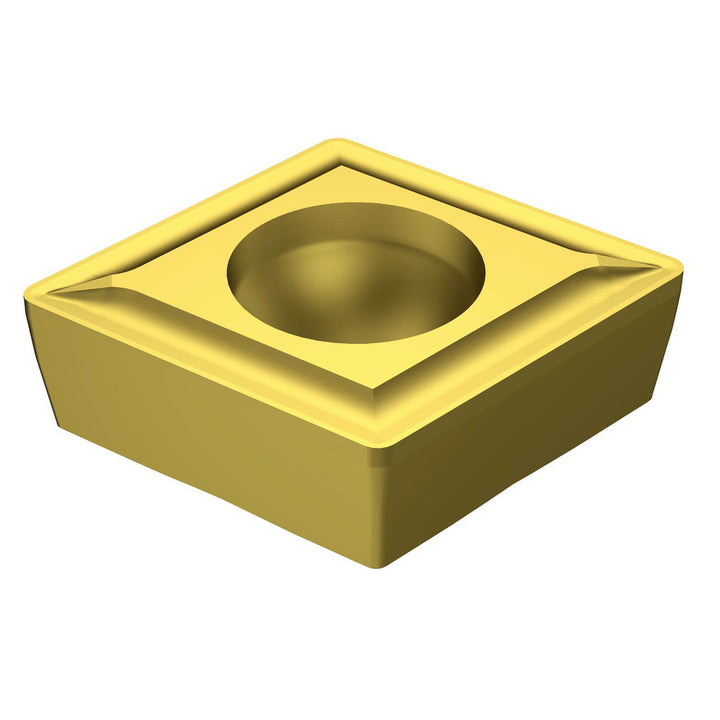

CCMT 06 02 04-UF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5724042

Sandvik Coromant

CCMT 06 02 04-UF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5724042

MFR# 5724042ISO/ANSI# CCMT060204Series CoroTurn 107

$13.10List $16.79 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade235
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5724042 is a CCMT 06 02 04-UF 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerUF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 04-UF 235
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturer grade235
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeM
Wiper edgeNo
