Sandvik Coromant

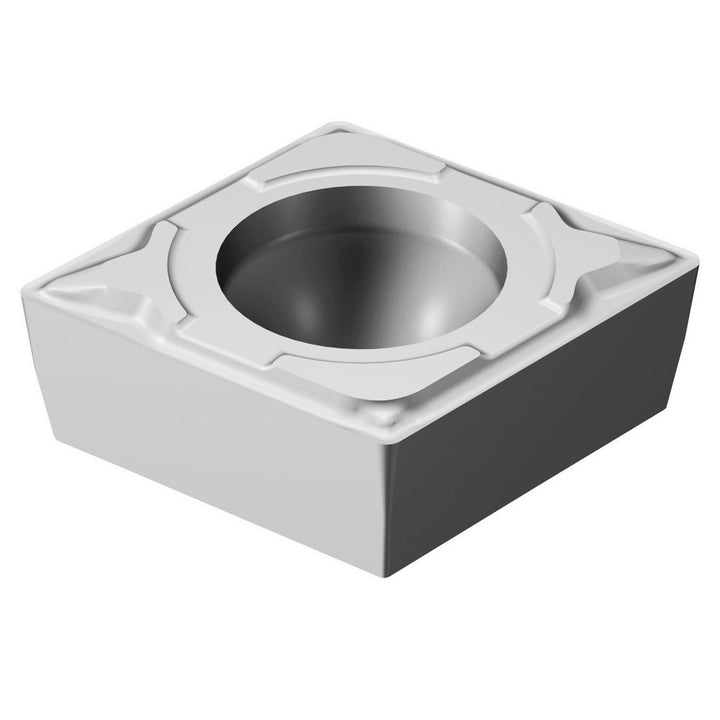

CCMT 09 T3 02-KF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5724137
MFR# 5724137ISO/ANSI# CCMT 09 T3 02-KF H13ASeries CoroTurn 107
$12.86List $16.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5724137 is a CCMT 09 T3 02-KF H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKF
Clearance codeC
Corner radius0.0079
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3729
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 02-KF H13A
Length range0.3000 - 0.4000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
