Sandvik Coromant

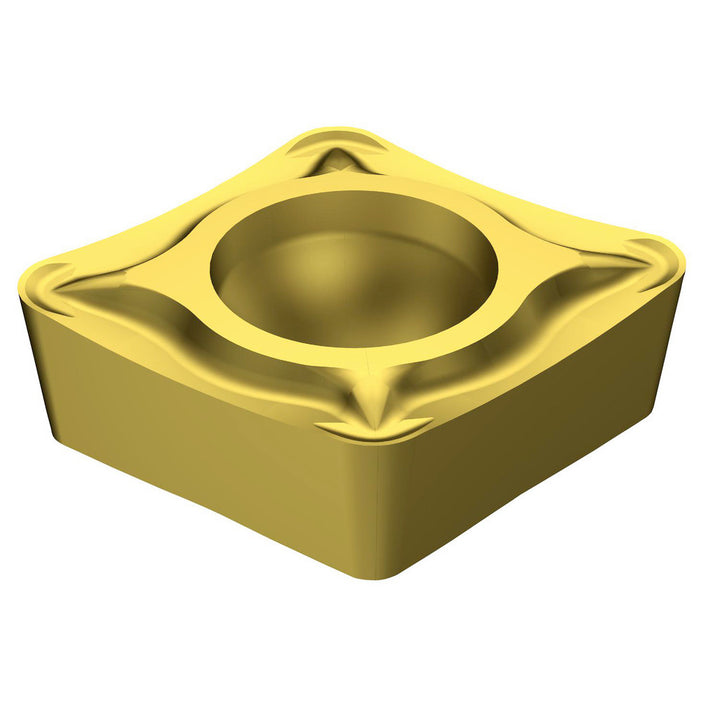

CCMT 09 T3 04-UM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5724152
MFR# 5724152ISO/ANSI# CCMT 09 T3 04-UM 2025Series CoroTurn 107
$16.03List $20.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724152 is a CCMT 09 T3 04-UM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-UM 2025
Length range0.3000 - 0.4000
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
