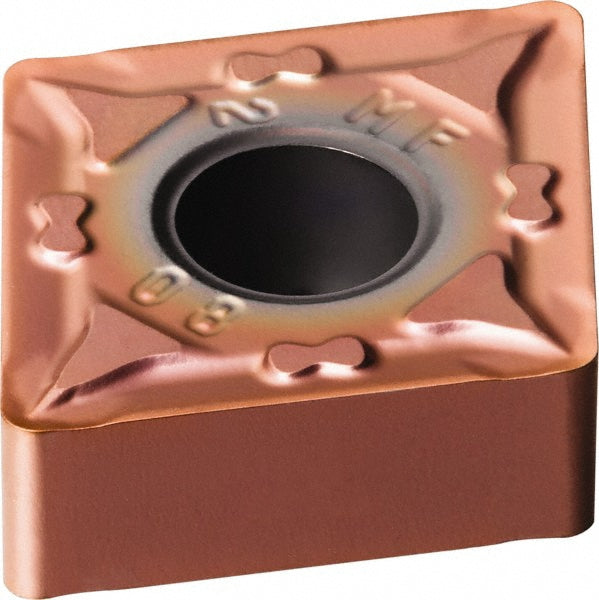

CNMG 12 04 08-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5724243
MFR# 5724243ISO/ANSI# CNMG 12 04 08-MF 1125Series T-Max P
$18.09List $23.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724243 is a CNMG 12 04 08-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-MF 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
