Sandvik Coromant

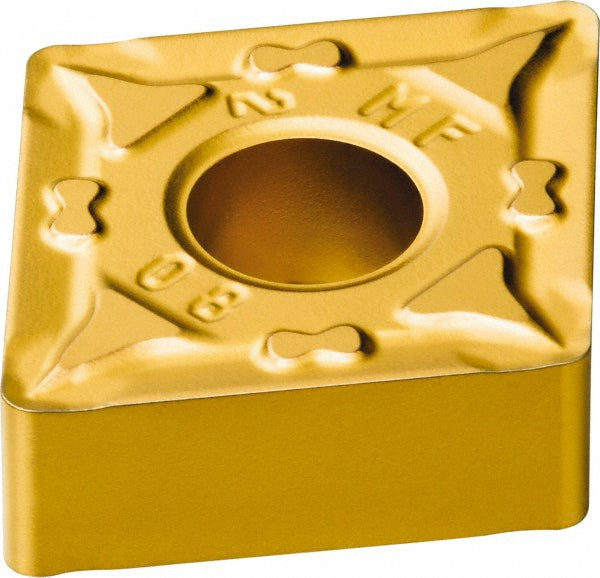

CNMG 12 04 08-MF S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5724294
MFR# 5724294ISO/ANSI# CNMG 12 04 08-MF S05FSeries T-Max P
$20.39List $26.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724294 is a CNMG 12 04 08-MF S05F carbide indexable insert, grade S05F, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-MF S05F
Length range0.4000 - 0.5000
Manufacturer gradeS05F
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
