Sandvik Coromant

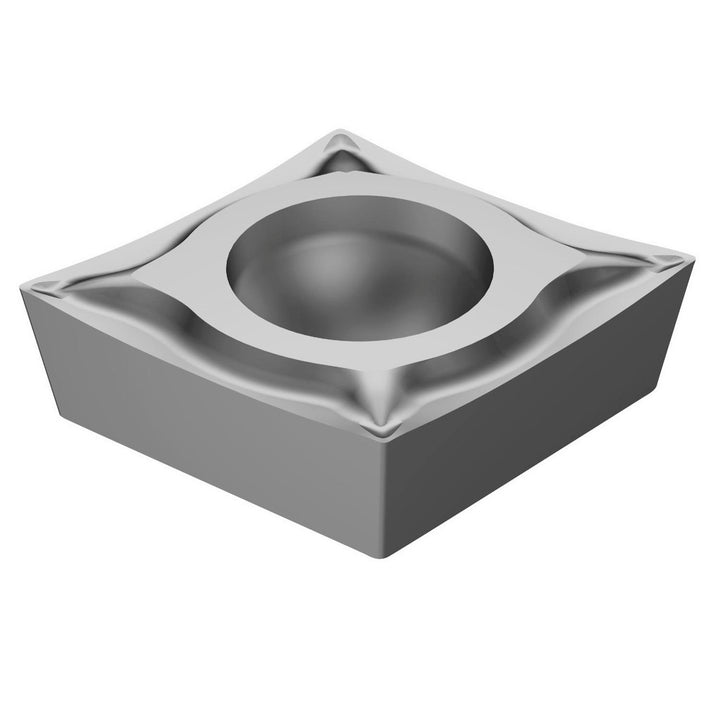

CCGT060202UMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5724368
MFR# 5724368ISO/ANSI# CCGT060202UMH13ASeries CoroTurn 107
$19.46List $24.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5724368 is a CCGT060202UMH13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202UMH13A
Length range0.0000 - 0.3000
Manufacturers catalog number5724368
Manufacturer gradeH13A
Maximum depth of cut0.2461
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
