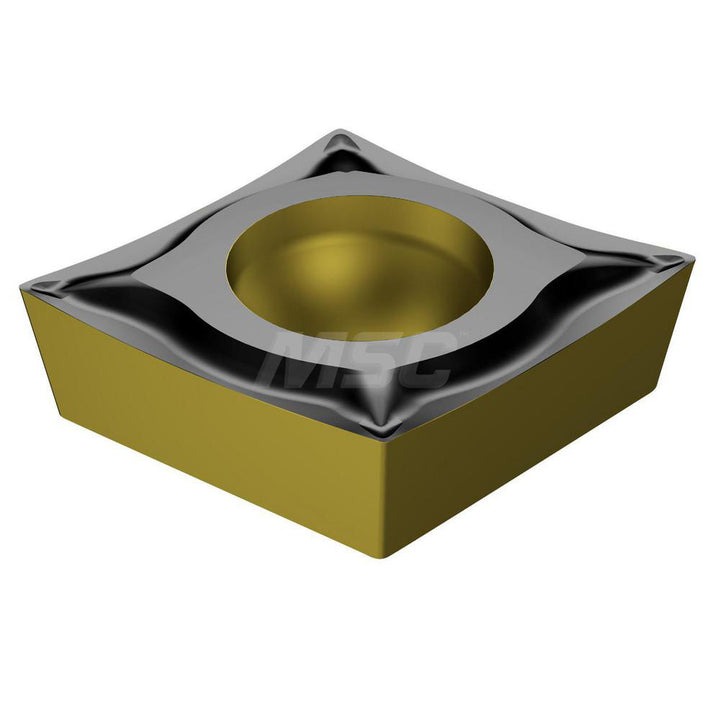

CCGT060202UM1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5724380
MFR# 5724380ISO/ANSI# CCGT060202UM1515Series CoroTurn 107
$26.86List $34.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724380 is a CCGT060202UM1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202UM1515
Length range0.0000 - 0.3000
Manufacturers catalog number5724380
Manufacturer grade1515
Maximum depth of cut0.2461
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
