Sandvik Coromant

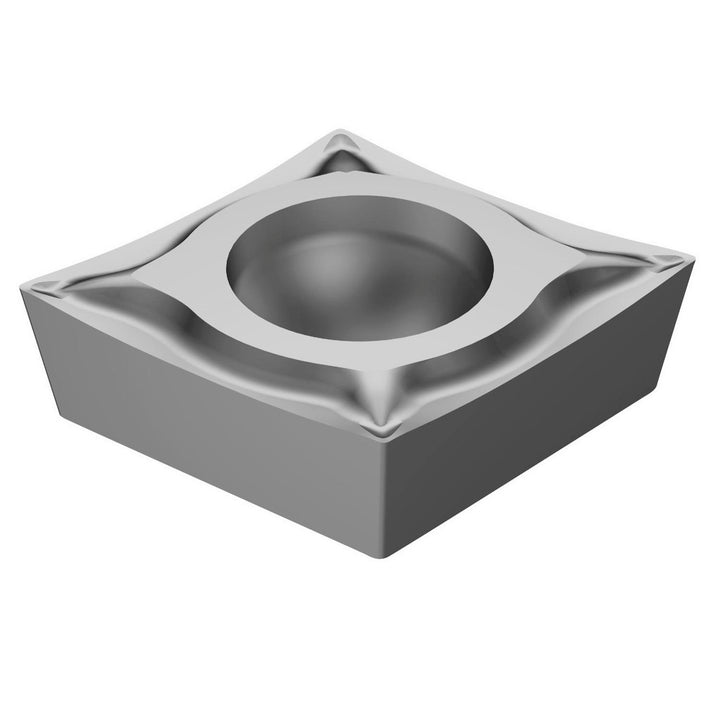

CCGT 06 02 04-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5724386
MFR# 5724386ISO/ANSI# CCGT 06 02 04-UM H13ASeries CoroTurn 107
$19.46List $24.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5724386 is a CCGT 06 02 04-UM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT 06 02 04-UM H13A
Length range0.0000 - 0.3000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
