Sandvik Coromant

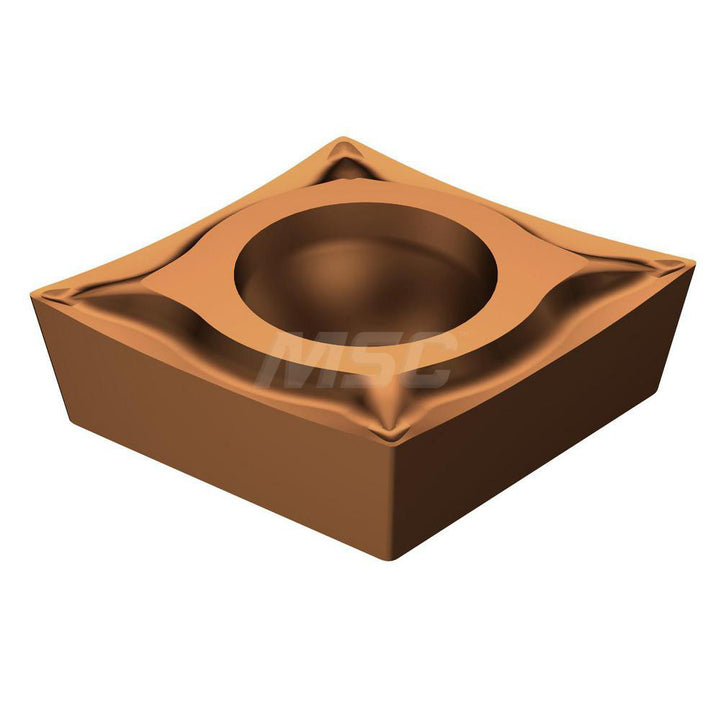

CCET060202UM1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5724392
MFR# 5724392ISO/ANSI# CCET060202UM1115Series CoroTurn 107
$29.59List $37.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724392 is a CCET060202UM1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCET
Insert thickness in3/32
Iso codeCCET060202UM1115
Length range0.0000 - 0.3000
Manufacturers catalog number5724392
Manufacturer grade1115
Maximum depth of cut0.2461
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeE
Wiper edgeNo
