Sandvik Coromant

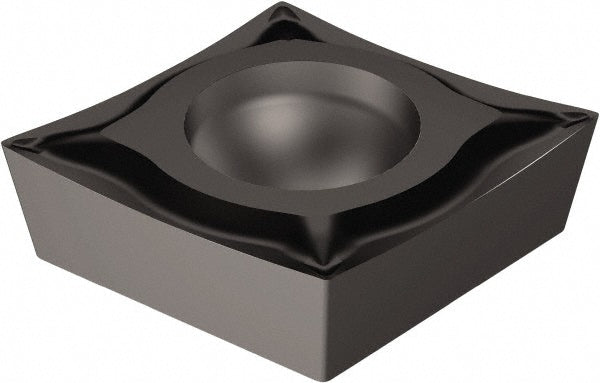

CCET 06 02 04-UM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5724406
MFR# 5724406ISO/ANSI# CCET 06 02 04-UM 1105
$29.59List $37.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724406 is a CCET 06 02 04-UM 1105 carbide indexable insert, grade 1105, TiAlN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiAlN
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCET
Insert thickness in3/32
Iso codeCCET 06 02 04-UM 1105
Length range0.0000 - 0.3000
Manufacturer grade1105
Relief angle7
Tolerance codeE
