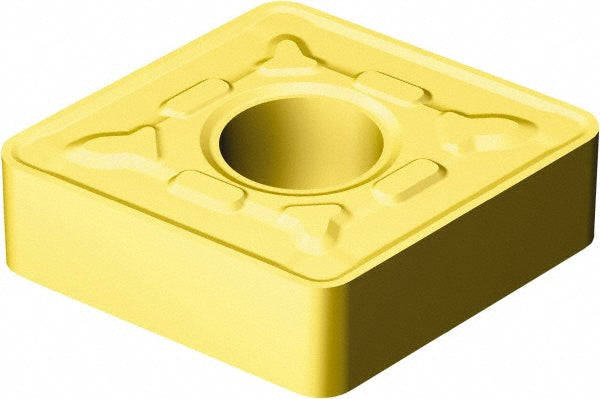

CNMG 12 04 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5724413

Sandvik Coromant

CNMG 12 04 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5724413

MFR# 5724413ISO/ANSI# CNMG120408Series T-Max P

$16.88List $21.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade2035
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5724413 is a CNMG 12 04 08-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-MR 2035
Iso insert codeCNMG120408
Iso size code120408
Length range0.4000 - 0.5000
Manufacturer grade2035
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
