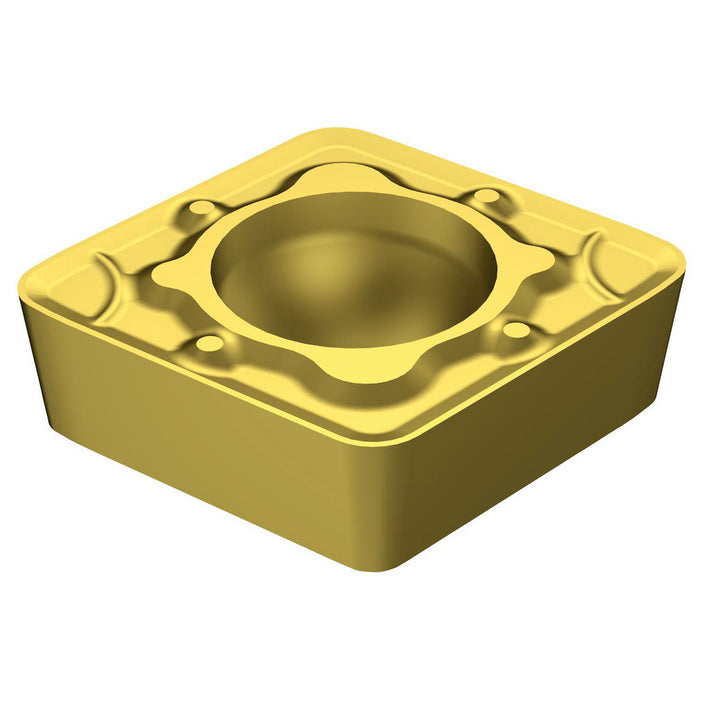

CCMT09T308WM2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5724486

Sandvik Coromant

CCMT09T308WM2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5724486

MFR# 5724486ISO/ANSI# CCMT09T308Series CoroTurn 107

$15.28List $19.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade2015
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5724486 is a CCMT09T308WM2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerWM
Chip breaker operationWiper - Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308WM2015
Iso insert codeCCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number5724486
Manufacturer grade2015
Maximum depth of cut0.3492
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeYes
