Sandvik Coromant

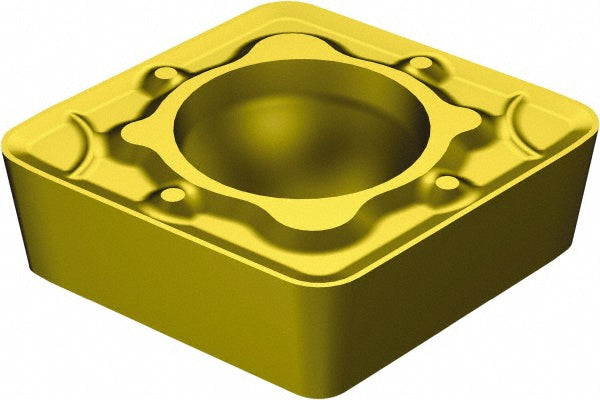

CCMT 09 T3 08-WM 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5724493
MFR# 5724493ISO/ANSI# CCMT09T308Series CoroTurn 107
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724493 is a CCMT 09 T3 08-WM 3005 carbide indexable insert, grade 3005, TiCN coated.
Specifications
Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerWM
Chip breaker operationWiper - Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-WM 3005
Iso insert codeCCMT09T308
Iso size code09T308
Lead angle95
Manufacturer grade3005
Maximum depth of cut (mm)8.87
Relief angle7
Side clearancePositive
Tolerance codeM
