Sandvik Coromant

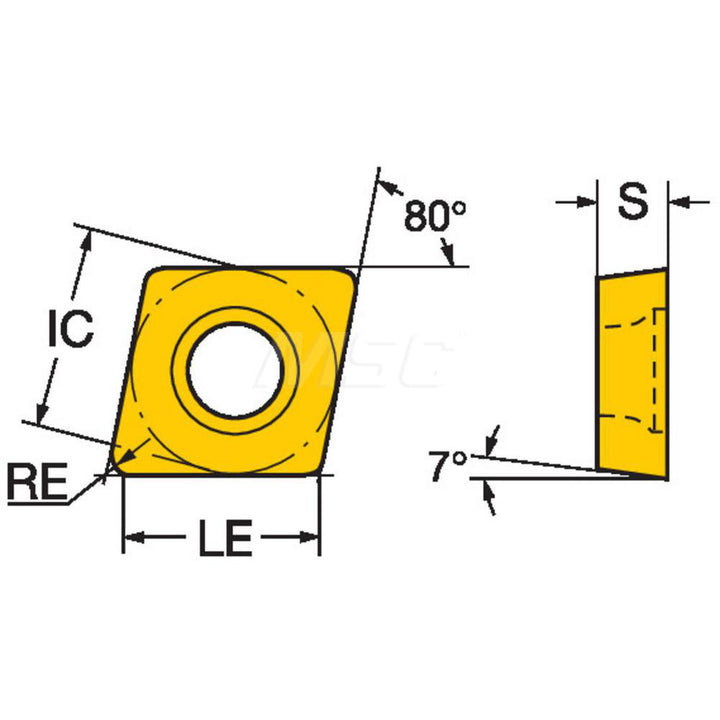

CCMT 09 T3 08-WF 1525 Cermet Insert, Grade 1525, TiCN - Sandvik Coromant 5724512
MFR# 5724512ISO/ANSI# CCMT 09 T3 08-WF 1525Series CoroTurn 107
$17.51List $22.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1525
MaterialCermet
CoatingTiCN
Description
The Sandvik Coromant 5724512 is a CCMT 09 T3 08-WF 1525 cermet indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3493
Insert materialCermet
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-WF 1525
Length range0.3000 - 0.4000
Manufacturer grade1525
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
