Sandvik Coromant

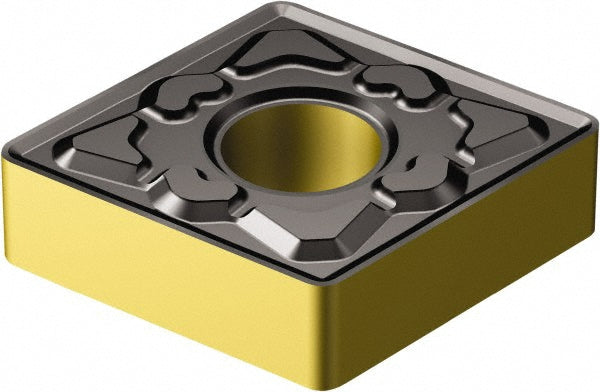

CNMG 12 04 12-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5724526
MFR# 5724526ISO/ANSI# CNMG 12 04 12-KM 3210Series T-Max P
$19.33List $24.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724526 is a CNMG 12 04 12-KM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4605
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-KM 3210
Length range0.4000 - 0.5000
Manufacturer grade3210
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
