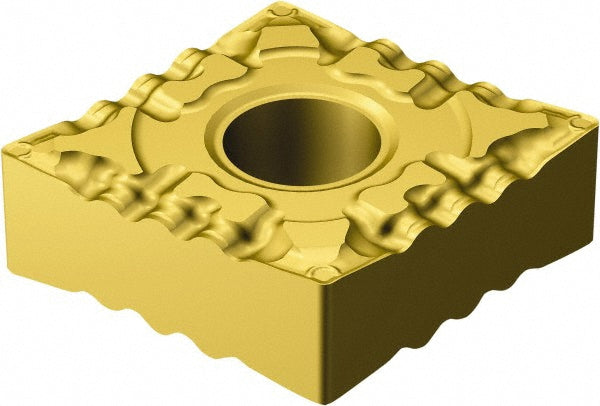

CNMG 12 04 04-PF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5724728

Sandvik Coromant

CNMG 12 04 04-PF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5724728

MFR# 5724728ISO/ANSI# CNMG120404Series T-Max P

$17.77List $22.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade1525
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5724728 is a CNMG 12 04 04-PF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerPF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4920
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 04-PF 1525
Iso insert codeCNMG120404
Iso size code120404
Length range0.4000 - 0.5000
Manufacturer grade1525
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
