Sandvik Coromant

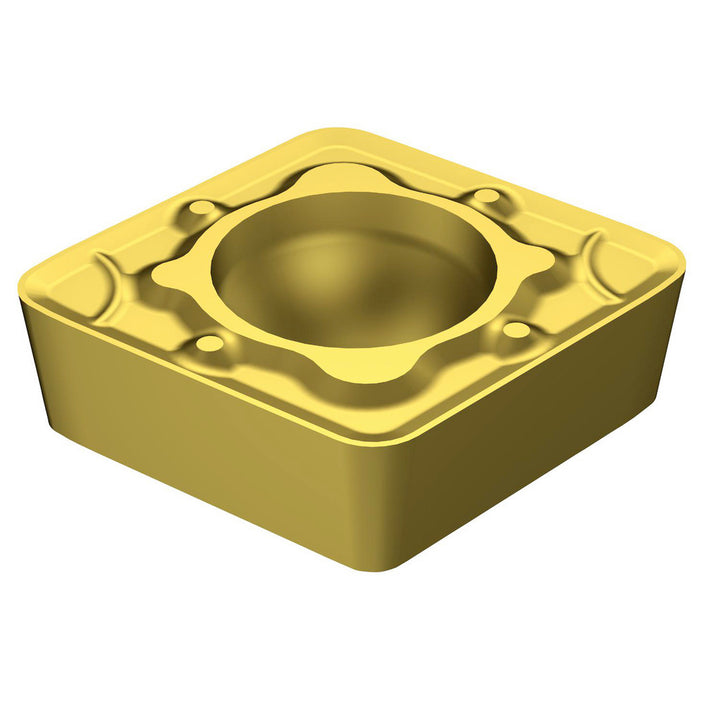

CCMT 09 T3 04-WM 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5724750
MFR# 5724750ISO/ANSI# CCMT 09 T3 04-WM 2015Series CoroTurn 107
$18.49List $23.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724750 is a CCMT 09 T3 04-WM 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerWM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-WM 2015
Length range0.3000 - 0.4000
Manufacturer grade2015
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeYes
