Sandvik Coromant

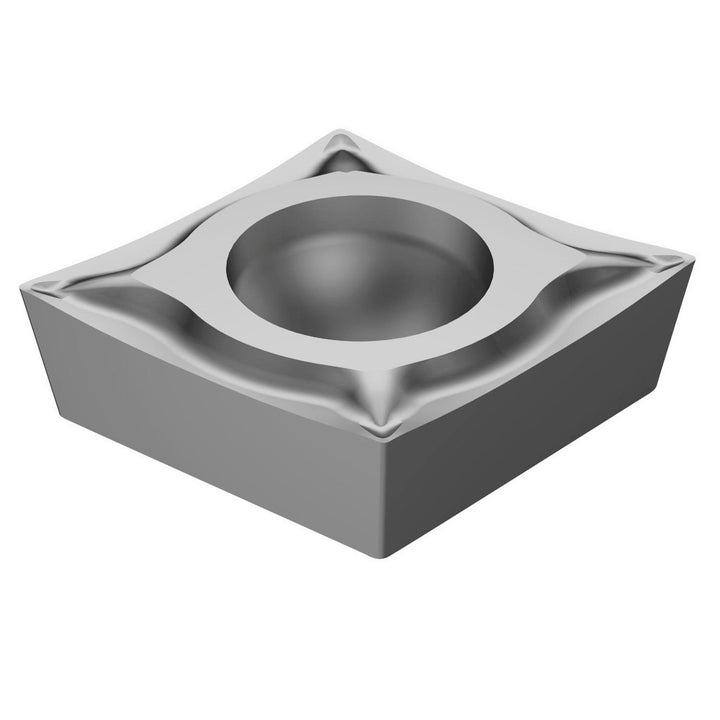

CCGT120404UMH10A Carbide Insert, Grade H10A - Sandvik Coromant 5724851
MFR# 5724851ISO/ANSI# CCGT120404UMH10ASeries CoroTurn 107
$31.40List $40.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH10A
MaterialCarbide
Description
The Sandvik Coromant 5724851 is a CCGT120404UMH10A carbide indexable insert, grade H10A. Suited for superalloy, titanium.
Specifications
Chip breakerUM
Clearance codeC
Corner radius in1/64
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120404UMH10A
Length range0.5000 - 0.6000
Manufacturers catalog number5724851
Manufacturer gradeH10A
Maximum depth of cut0.4921
Number of cutting edges2
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeG
Wiper edgeNo
