Sandvik Coromant

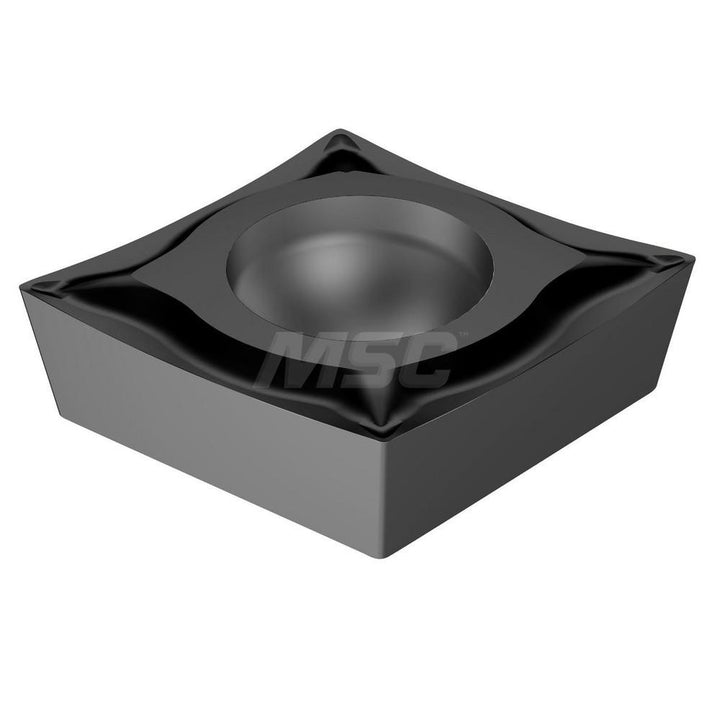

CCGT 09 T3 08-UM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5724870
MFR# 5724870ISO/ANSI# CCGT 09 T3 08-UM 1105Series CoroTurn 107
$30.95List $39.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724870 is a CCGT 09 T3 08-UM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3493
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT 09 T3 08-UM 1105
Length range0.3000 - 0.4000
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
