Sandvik Coromant

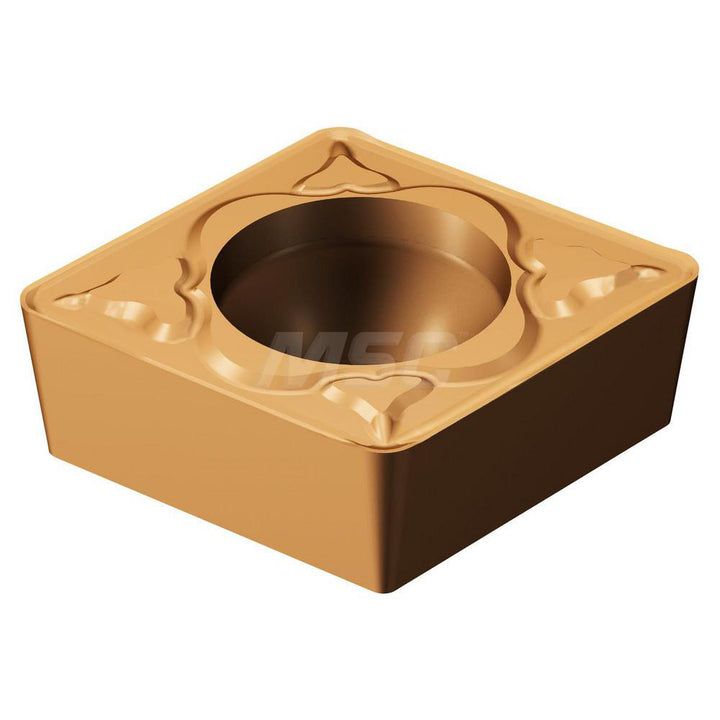

CCMT 12 04 04-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5724948
MFR# 5724948ISO/ANSI# CCMT 12 04 04-MM 1125Series CoroTurn 107
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724948 is a CCMT 12 04 04-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.4920
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 04-MM 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
