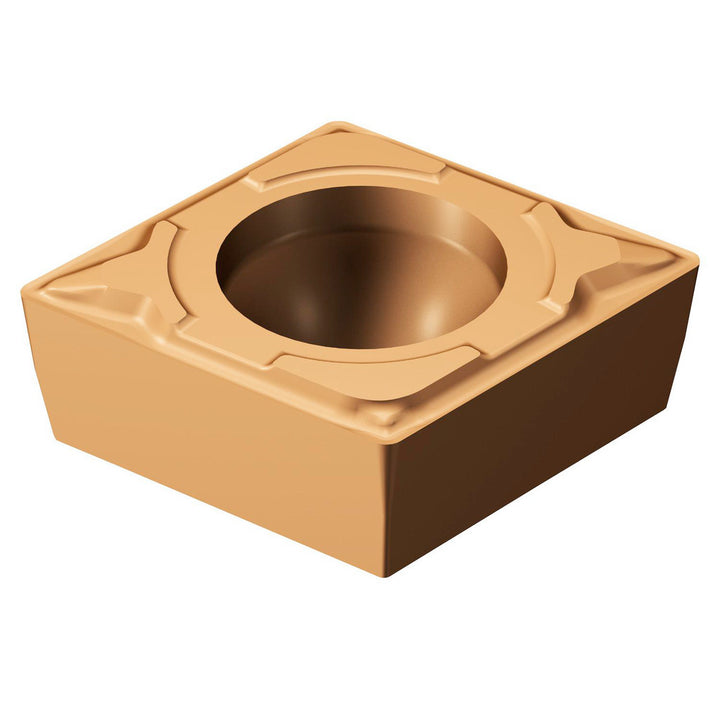

CCMT120404MF1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5724970
MFR# 5724970ISO/ANSI# CCMT120404Series CoroTurn 107
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724970 is a CCMT120404MF1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Ansi insert codeCCMT431
Ansi size code431
Chip breakerMF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120404MF1125
Iso insert codeCCMT120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number5724970
Manufacturer grade1125
Maximum depth of cut0.4921
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeM
Wiper edgeNo
