Sandvik Coromant

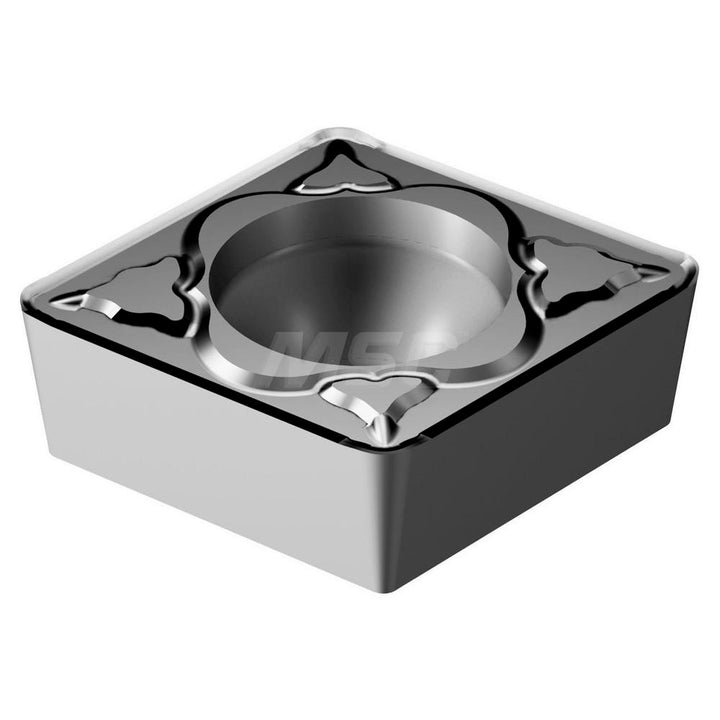

CCMT120404MM1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5724981
MFR# 5724981ISO/ANSI# CCMT120404MM1105Series CoroTurn 107
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 5724981 is a CCMT120404MM1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius in1/64
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120404MM1105
Length range0.5000 - 0.6000
Manufacturers catalog number5724981
Manufacturer grade1105
Maximum depth of cut0.4921
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
