Sandvik Coromant

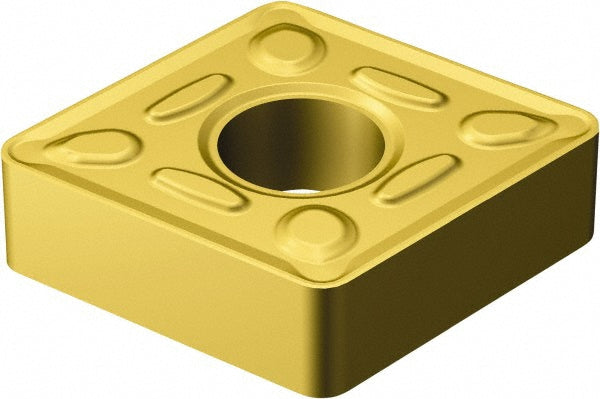

CNMG 16 06 12-HM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5725116
MFR# 5725116ISO/ANSI# CNMG 16 06 12-HM 2025
$29.56List $37.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5725116 is a CNMG 16 06 12-HM 2025 carbide indexable insert, grade 2025, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in3/64
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.5874
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 12-HM 2025
Length range0.5000 - 0.6000
Manufacturer grade2025
Relief angle0
Tolerance codeM
