Sandvik Coromant
CNMG 16 06 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5725320
MFR# 5725320ISO/ANSI# CNMG 16 06 08-MM 2025Series T-Max P
$29.52List $37.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description

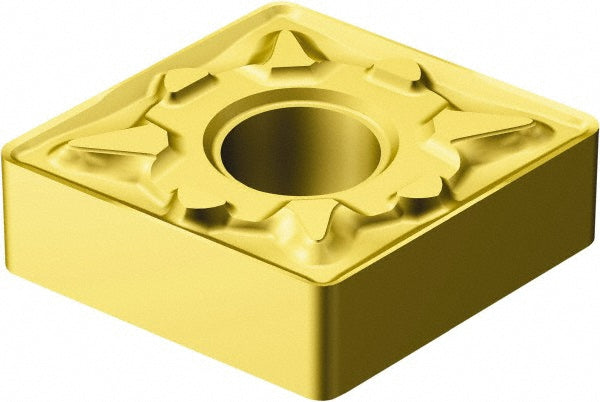

The Sandvik Coromant 5725320 is a CNMG 16 06 08-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6032
Insert materialCarbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 08-MM 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
