Sandvik Coromant

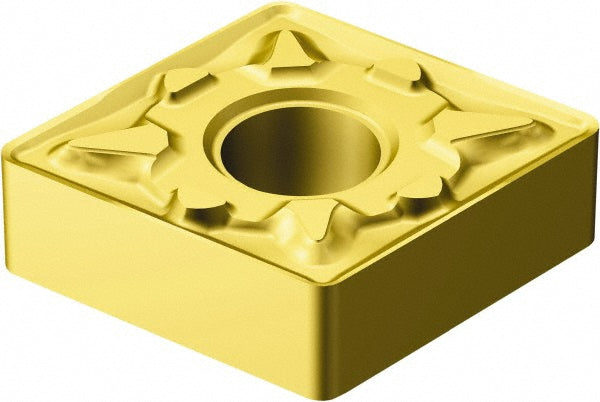

CNMG 16 06 16-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5725396
MFR# 5725396ISO/ANSI# CNMG 16 06 16-MM 2035Series T-Max P
$25.85List $33.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5725396 is a CNMG 16 06 16-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 16-MM 2035
Length range0.6000 - 0.6500
Manufacturers catalog number5725396
Manufacturer grade2035
Maximum depth of cut0.5717
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
