Sandvik Coromant
CNMG 19 06 12-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5725527
MFR# 5725527ISO/ANSI# CNMG 19 06 12-MR 2035Series T-Max P
$37.19List $47.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description

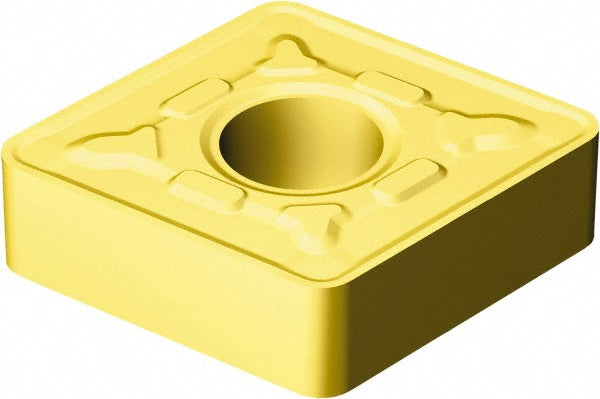

The Sandvik Coromant 5725527 is a CNMG 19 06 12-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7143
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 12-MR 2035
Length range0.7000 - 10.0000
Manufacturer grade2035
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
